5 editable schematics
Campervan wiring examples
Plan roof solar, alternator charging, shore charging and the DC side of an inverter.
Campervan DC-DC charging with Orion XS

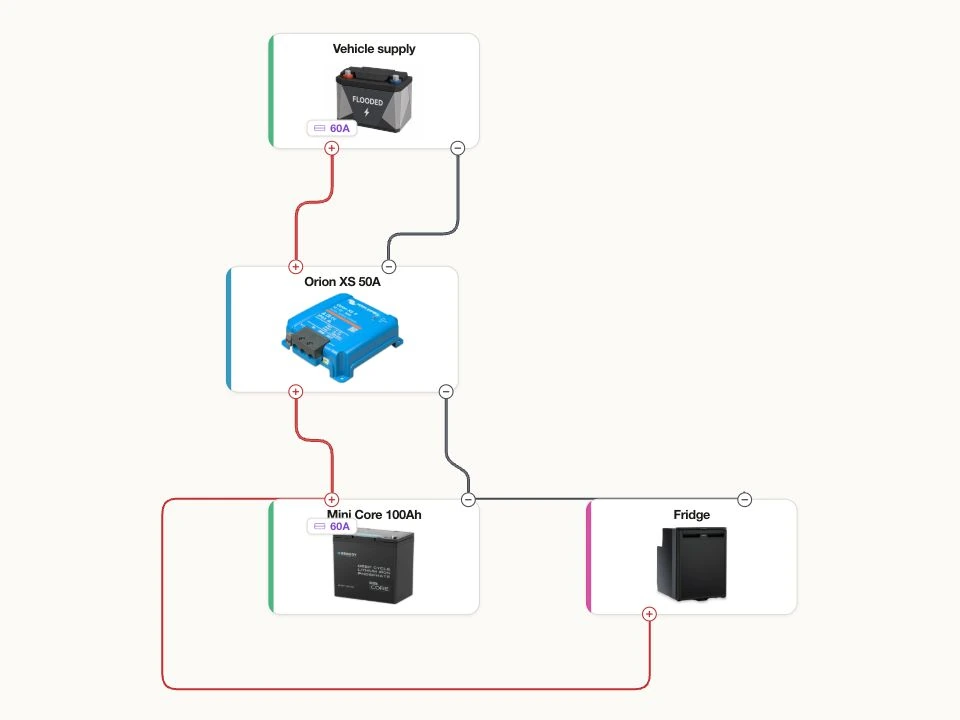

An Orion XS links the vehicle supply to a separate house battery, with a fridge on its own fused branch.
Explore the schematic
Campervan solar and alternator charging

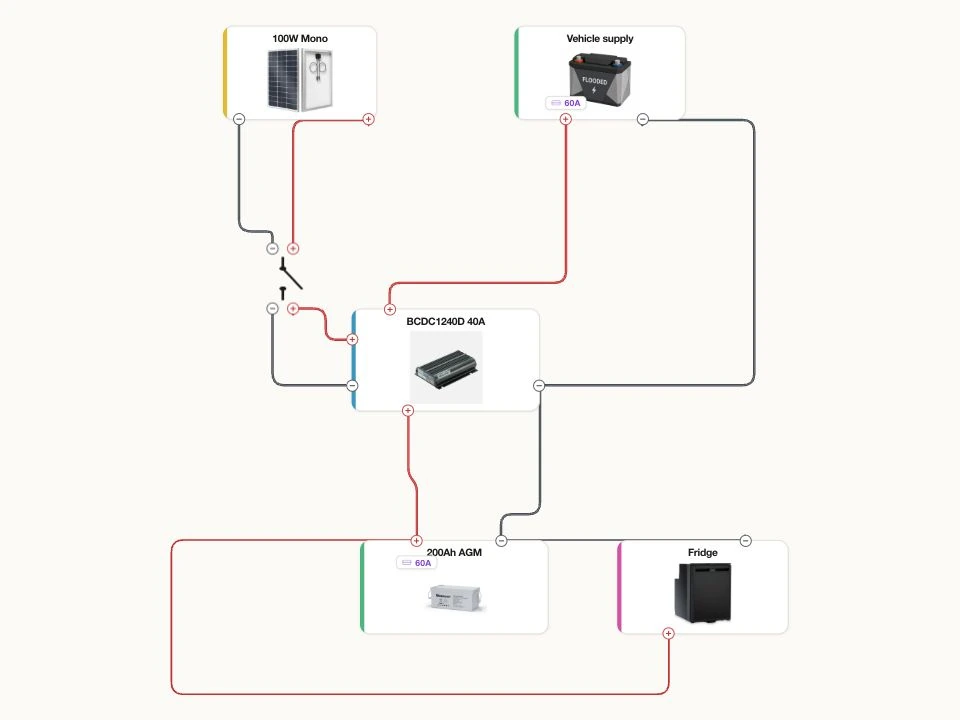

A REDARC BCDC1240D accepts roof solar and vehicle power through one charger, feeding an AGM house battery and fridge.
Explore the schematic
Campervan solar for a battery, fan and lights

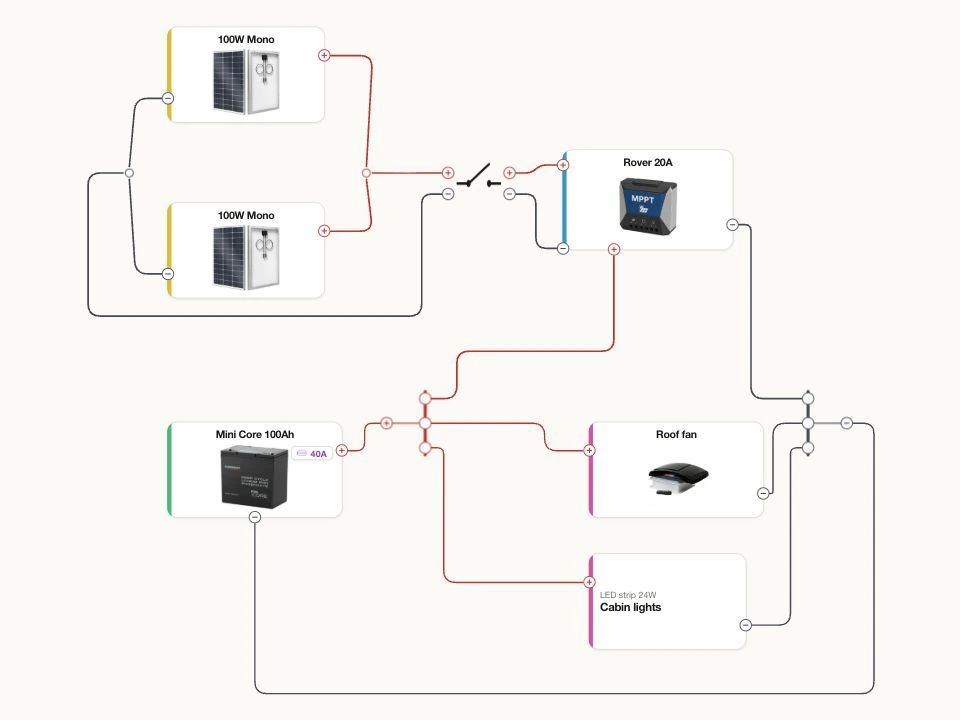

Two parallel roof panels charge a house battery through a Rover controller. The fan and lights each have a separate fused circuit.
Explore the schematic
Campervan shore charger with SmartShunt

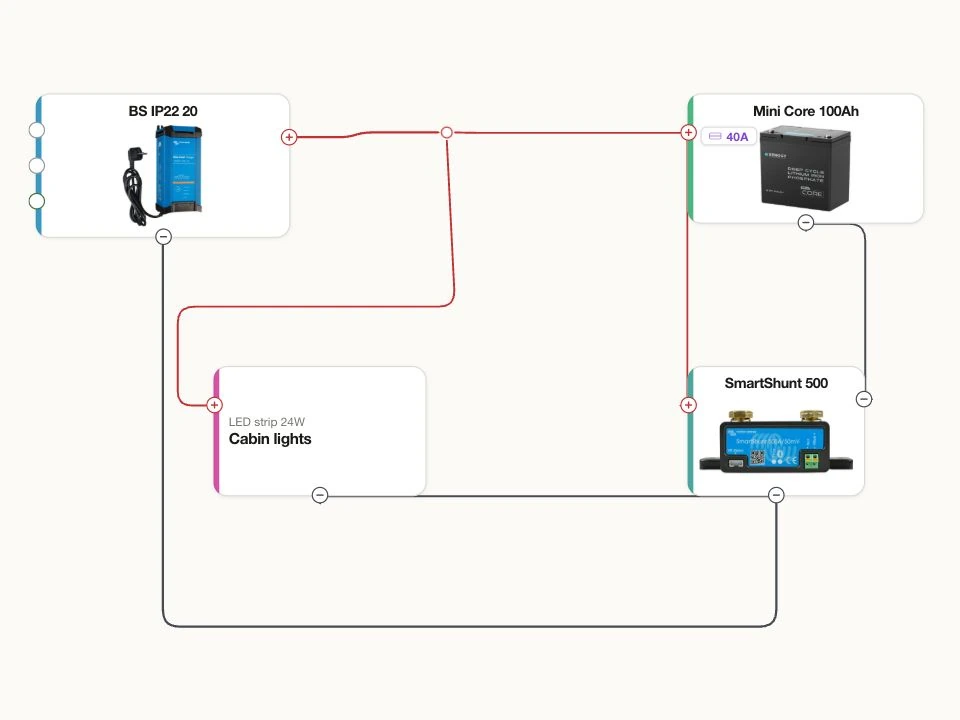

A Blue Smart charger and SmartShunt share one house battery. Both charging and lighting current pass through the monitor.
Explore the schematic
Campervan inverter with a separate DC supply

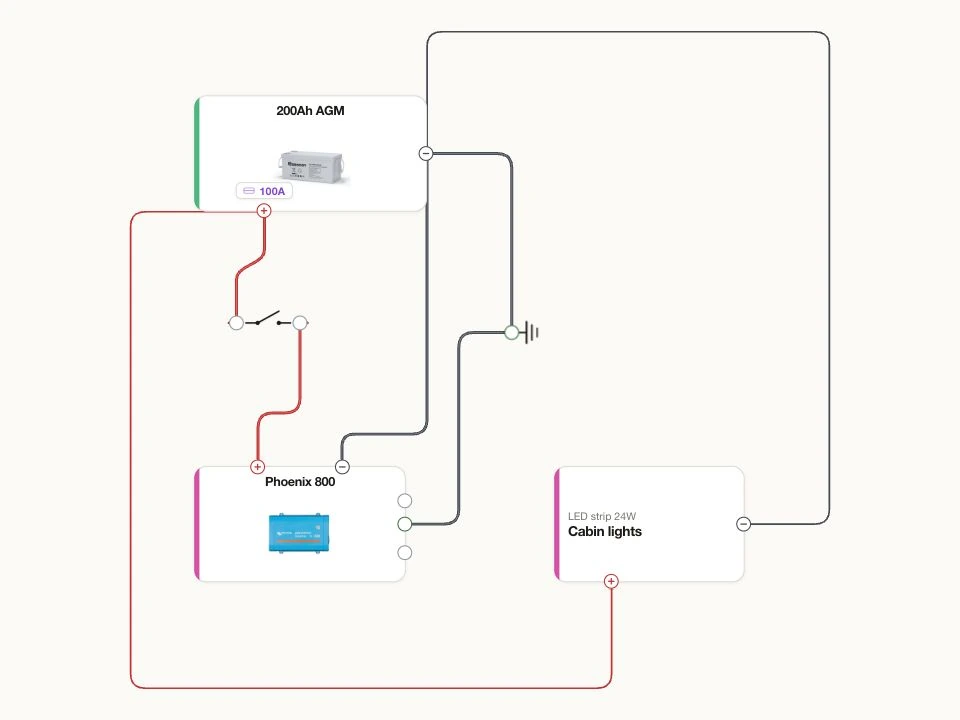

A dedicated battery circuit feeds a Phoenix inverter, while a separate fused branch keeps the cabin lights independent.
