6 editable schematics

Boat wiring examples

Keep the bilge pump powered, retrofit a LiFePO4 house battery, or plan solar and separate-bank charging.

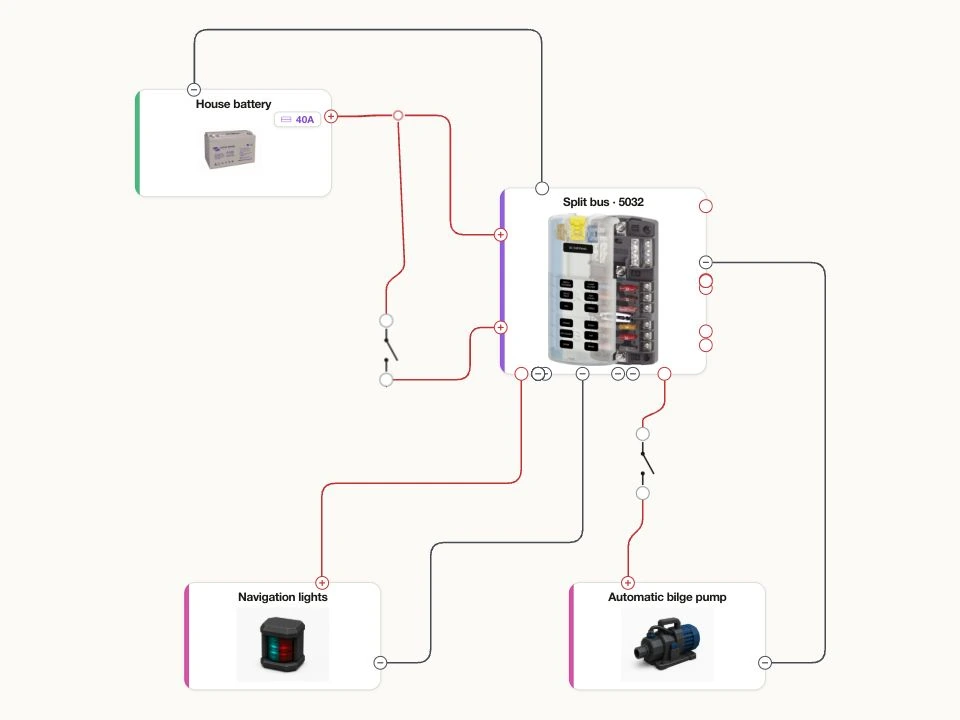

Bilge pump with an always-on supply

Keep the automatic bilge circuit powered when you switch off the rest of the boat.

Boat LiFePO4 house battery retrofit

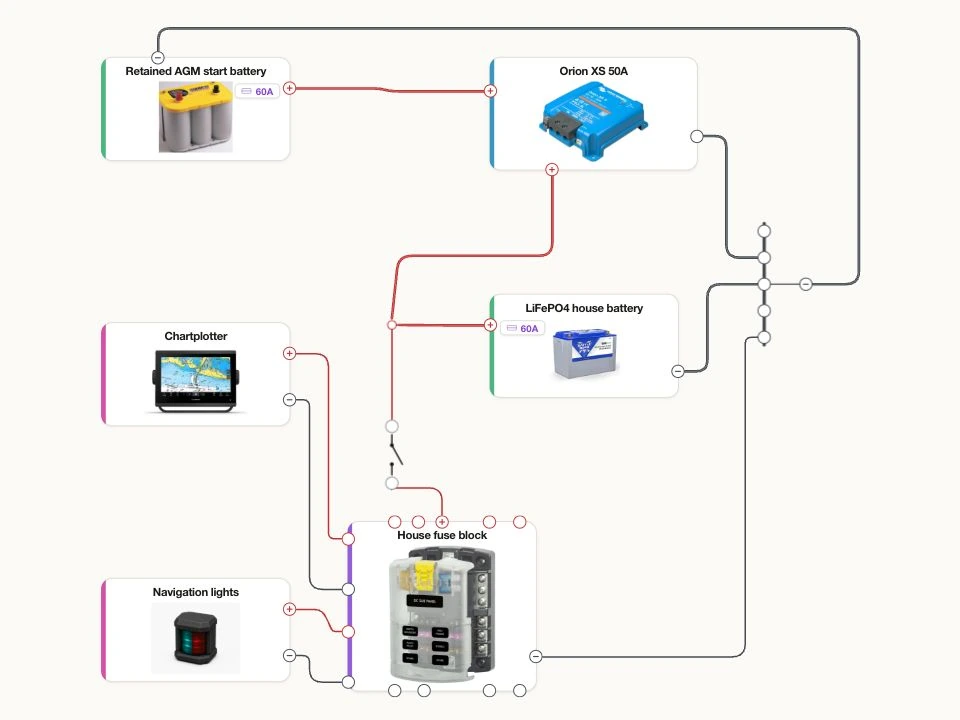

Replace the house battery with LiFePO4, retain a lead-acid starter battery and charge through a current-limited DC–DC charger.

Explore the schematic

Boat solar charging for a house battery

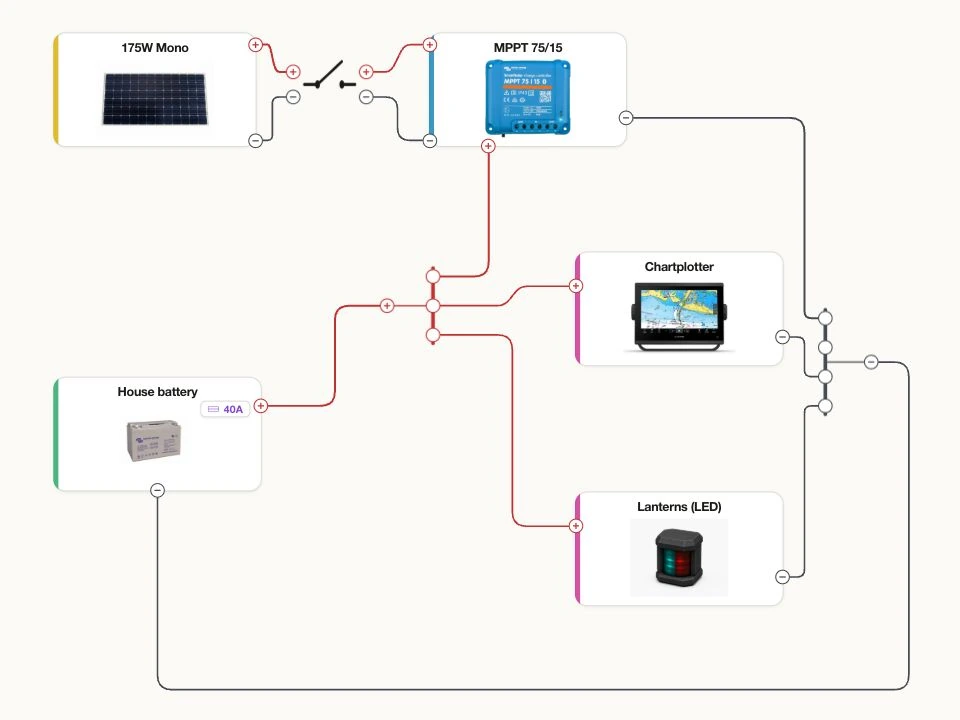

Follow a solar panel through its controller to a house battery, chartplotter and navigation lights.

Explore the schematic

12V trolling motor with a separate battery

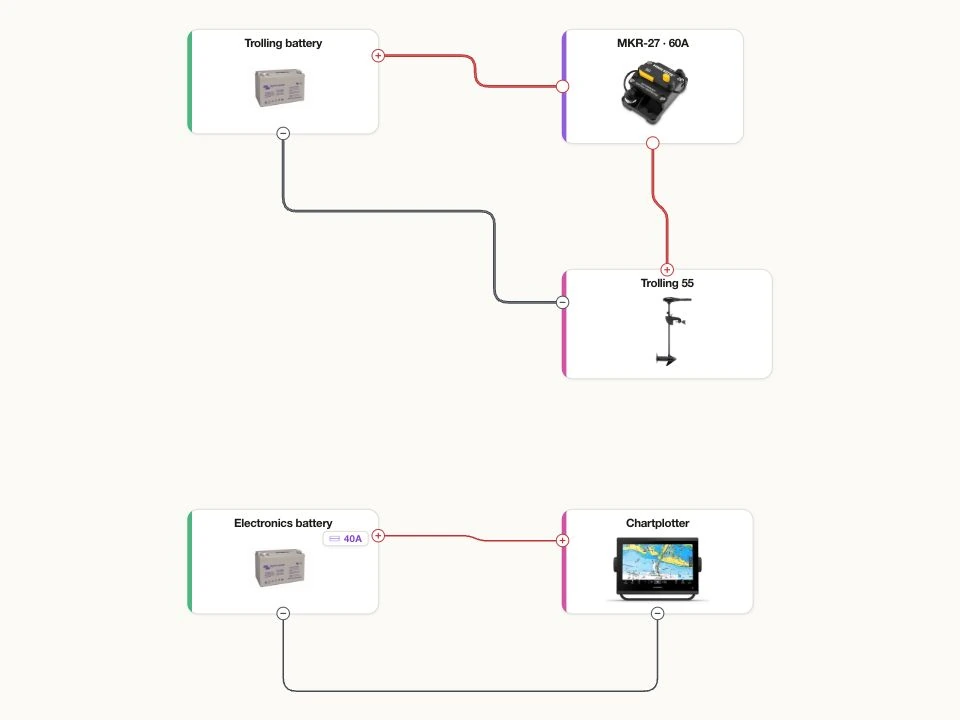

Give the trolling motor its own battery and keep the chartplotter on a separate supply.

Explore the schematic

Shore charging for two boat batteries

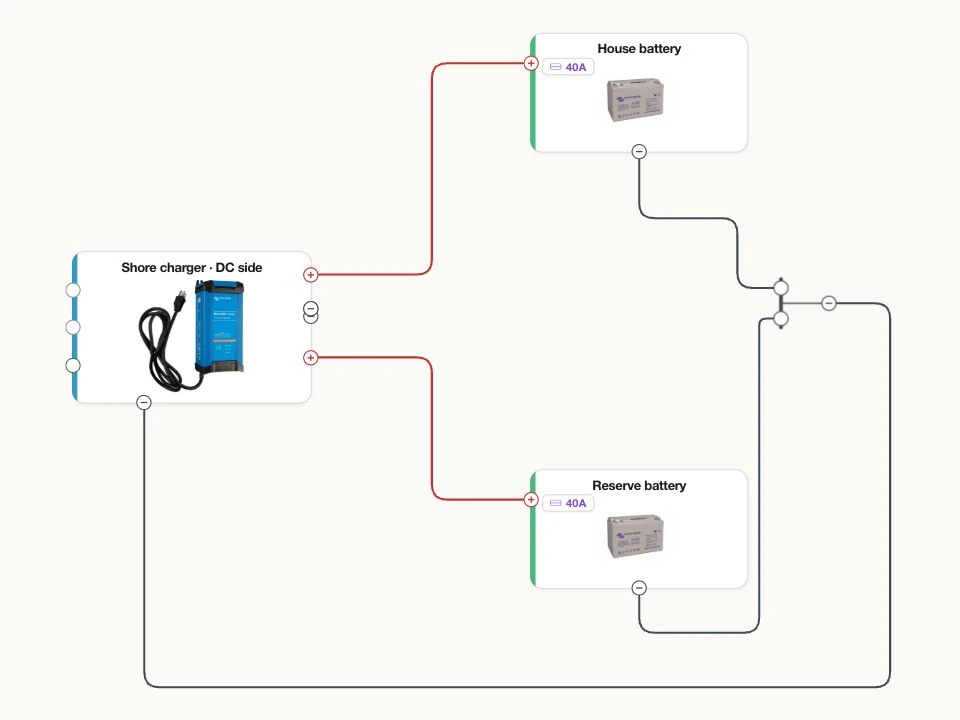

Use separate charger outputs to replenish two batteries without joining their positive terminals.

Explore the schematic

Boat dual battery selector switch

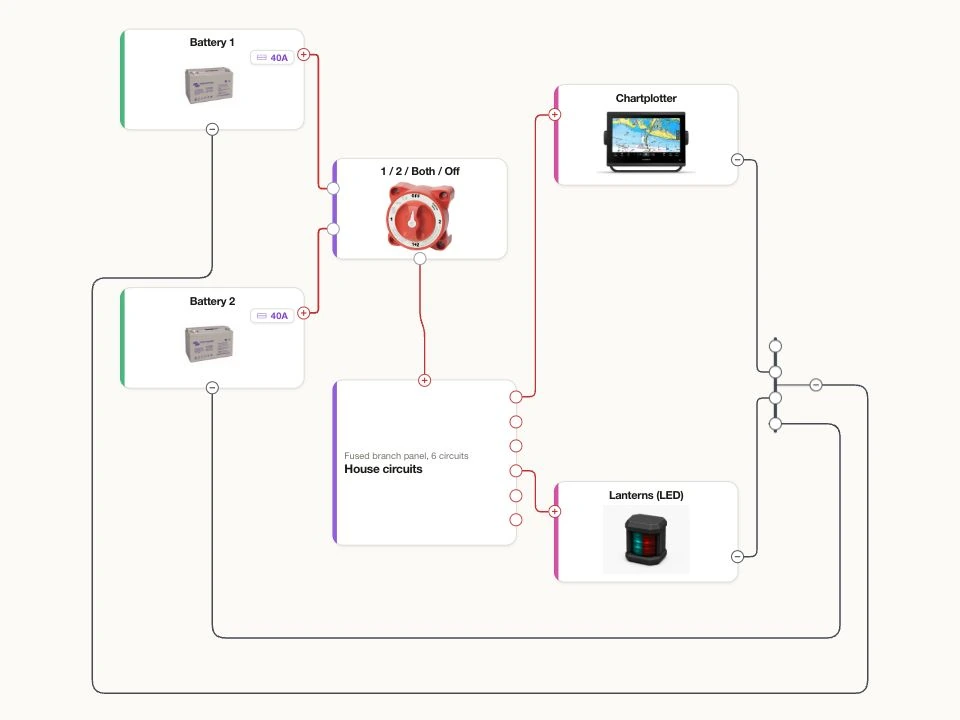

See how a 1–2–Both switch feeds the same boat circuits from either battery.

Explore the schematic
